產品介紹
WISE (Web Inside, Smart Engine) 為泓格科技所開發；具備自主邏輯控制與遠端監控通知等多項功能的智慧型控制器。在此系統下，使用者不再困擾於控制器中邏輯程式的撰寫，而僅需透過 WISE 所提供的網頁人機介面及滑鼠點選動作，即可完成控制器上工作邏輯的規劃，過程簡單且快速，其可大幅降低使用者在系統開發上的資源花費。

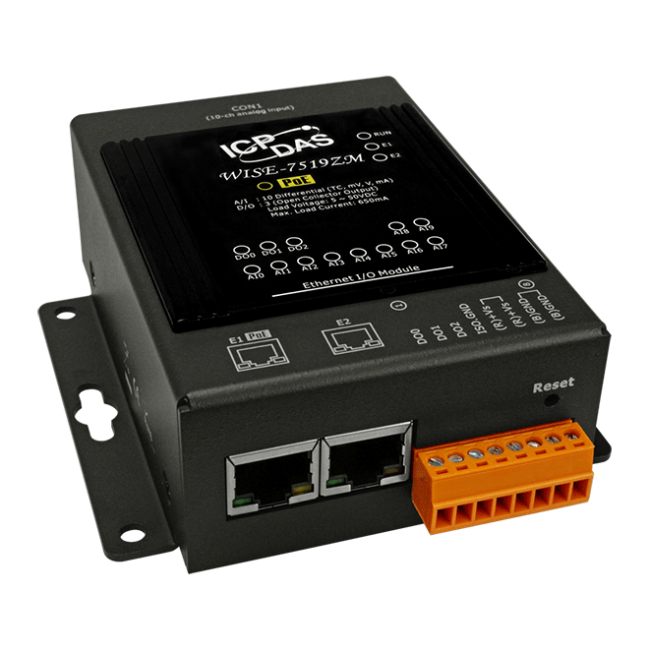

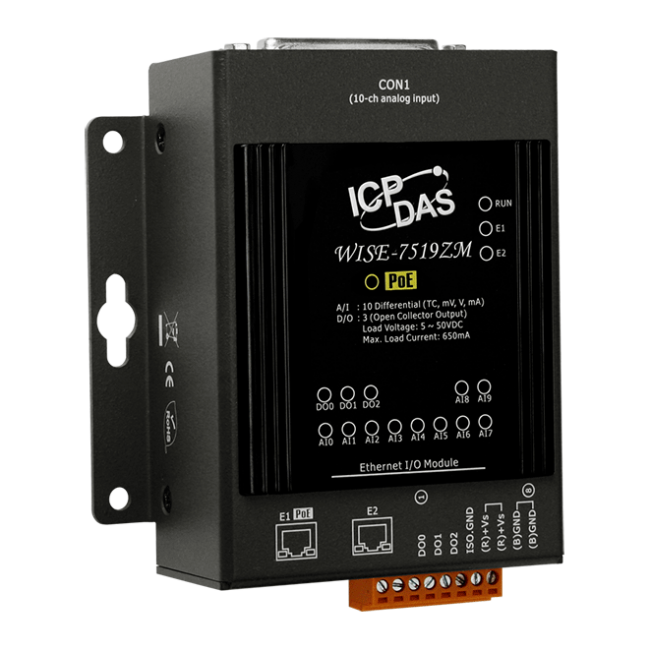

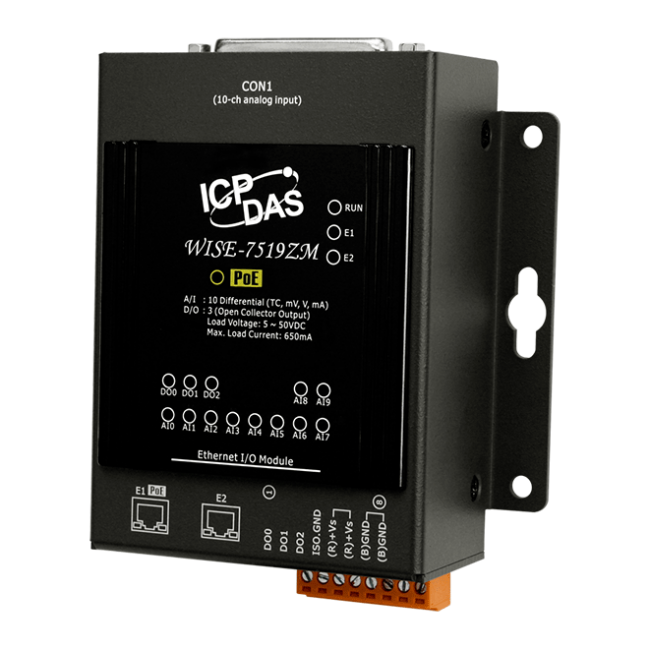

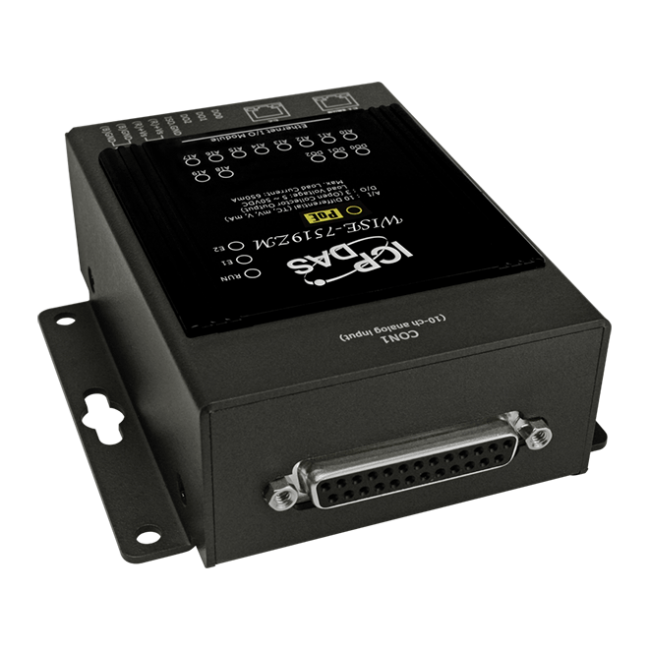

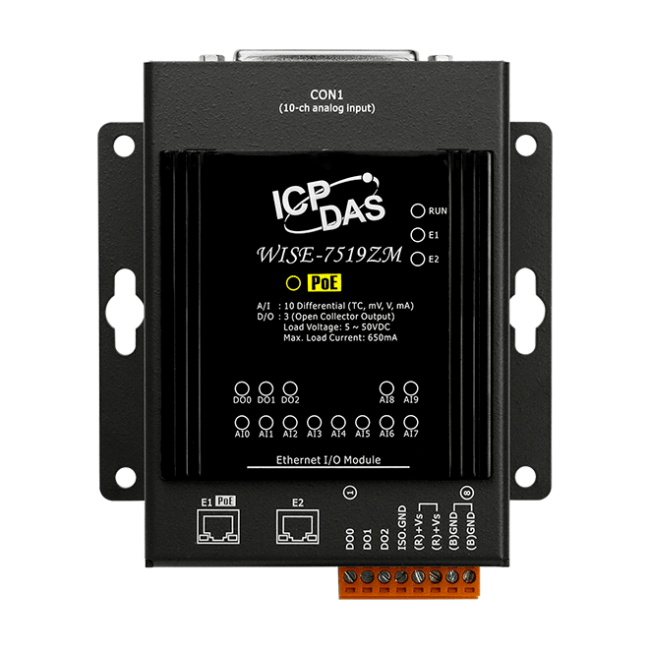

WISE-7519ZM 遵照 IEEE 802.3af 標準 (classification, Class 1) 中的 Power over Ethernet (PoE) 規範，可在 PoE 網路環境下透過網路線 (Category 5) 傳送電力。此功能提供了更大的靈活性及效率以簡化系統設計、節省空間並減少電線及電源插座的需求。此外，WISE-7519ZM 內建雙乙太網口 (Two-port Ethernet switch)，不需透過交換機 (Switch) 即可直接進行最多10個模組的串接。讓現場佈線更加方便。
WISE-7519ZM 提供 10 組 universal AI 通道及 3 組 DO 通道。透過內建的 IF-THEN-ELSE 邏輯規則執行引擎，WISE-7519ZM 可提供 I/O 通道監控、計時器/排程時序控制、E-mail/CGI 命令發送等功能，可運用於自動化監控應用中。此外，WISE-7519ZM 同時支援 Modbus TCP 及 MQTT 通訊協定，可與 SCADA、IoT 系統進行無縫整合。
產品特色
- 內建網頁伺服器，無須安裝軟體工具
- 無須撰寫程式，僅需要點選即可完成規則編輯
- 內建 IF-THEN-ELSE 的邏輯運算引擎
- 內建 I/O 通道 (10 組 universal AI 通道及 3 組 DO 通道)
- 支援 IO 通道監控、計數器、計時器、排程、Email 發送、CGI 命令發送等指令
- 透過 Modbus TCP 與 SCADA 系統進行無縫整合
- IEEE 802.3af 標準 Power over Ethernet (PoE)
- 內建雙乙太網口 (Two-port Ethernet switch)，提供 Daisy-Chain 方式連接
- 透過 MQTT 協定與 IT 及物聯網 (IoT) 系統進行無縫整合
產品應用
自動化建築、自動化工廠、自動化機械、遠端維護、遠端診斷及測試設備等。
硬體規格
| Thermocouple Input | |
| Channels | 10 (Differential) |
| Input Type | ±15 mV, ±50 mV, ±100 mV, ±150 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V ±20 mA, 0 to 20 mA, 4 to 20 mA (Jumper Selectable) Thermocouple (J, K, T, E, R, S, B, N, C, L, M, and LDIN43710) |
| Resolution | 16-bit |
| Sampling Rate | 10 Samples/Second (Total) |
| Accuracy | ±0.1% of FSR or better |
| Zero Drift | ±0.5 μV/°C |
| Span Drift | ±25 ppm/°C |
| Over Voltage Protection | 240 Vrms |
| Input Impedance | >300 kΩ |
| Common Mode Rejection | 86 dB Min. |
| Normal Mode Rejection | 100 dB |
| Temperature Output Consistency |
Yes |
| Stable Temperature Output in the Field |
Yes |
| Open Wire Detection | Yes |
| Virtual Channel to Channel Isolation |
±400 VDC |
| Digital Output | |
| Channels | 3 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Max. Load Current | 650 mA/Channel |
| Load Voltage | 5 VDC to 50 VDC |
| Overvoltage Protection | 60 VDC |
| Overload Protection | 1.4 A |
| Short-circuit Protection | Yes |
| Communication | |
| Ethernet Port | 2 x RJ-45, 10/100 Base-TX, Swtich Ports |
| PoE | Yes |
| Protocol | Modbus TCP, MQTT |
| LED Indicators | |
| for System Running | Yes |
| for Ethernet Link/Act | Yes |
| for I/O Channel Status | Yes |
| for PoE Power | Yes |
| 2-Way Isolation | |
| I/O | 2500 VDC |
| EMS Protection | |
| ESD (IEC 61000-4-2) | ±4 kV Contact for Each Terminal and ±8 kV Air for Random Point |
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| Power | |
| Reverse Polarity Protection | Yes |
| Powered from Terminal Block | 12 to 48 VDC |
| Powered from PoE | Yes, IEEE 802.3af, Class1 |
| Consumption | 3.6 W (Max.) |
| Mechanical | |
| Dimensions (L x W x H) | 114mm x 97mm x 38mm |
| Installation | Wall mounting |
| Environment | |
| Operating Temperature | -25 °C to +75 °C |
| Storage Temperature | -30 °C to +80 °C |
| Humidity | 10 to 90% RH, non-condensing |
軟體規格
| Functions | |
| Rule Configuration Website | Access Web server on WISE controllers to edit and upload logic rules through web browser. |
| 72 IF-THEN-ELSE Logic Rules | 3 IF conditions with AND or OR operators 3 THEN actions and 3 ELSE actions |
| 48 Internal Registers | Hold temporary variables and read/write data |
| 24 Timers | Delay / Timing functions. |
| 24 Schedules | Setup prescheduled routine tasks. |
| 24 Emails | Send Email messages to pre-set Email receivers. |
| 24 CGI Commands | Send pre-set CGI commands. |
| 24 Recipes | Set up THEN/ELSE action groups. |
| 8 P2P remote modules | Set up the connection information for the remote WISE modules. |
| Modbus TCP Protocol | Real time control and monitoring I/O channels and system status of controllers via SCADA software. |
| MQTT Protocol | Real time message publish/subscribe mechanism for I/O channels and system status via IT/IoT software. |
| IF Conditions | |
| AI Channel | = 、> 、< 、 ≥ 、 ≤ (value) |
| Internal Register | |
| DO Counter | = 、> 、< 、 ≥ 、 ≤ (value), Change |
| Timer | Timeout, Not Timeout |
| Schedule | In Range, Out of Range |
| P2P | DI, AI, DI counter, DO counter, IR |
| Rule Status | Enable, Disable |
| THEN / ELSE Actions | |
| DO Channel | ON, OFF, Pulse Output |
| Internal Register | Change the value |
| DO Counter | Reset |
| Timer | Start, Reset |
| Schedule | Enable, Disable |
| Send | |
| MQTT message | |
| CGI Commands | |
| Recipe | Execute |
| P2P | DO(On/Off), AO, IR |
| Rule Status | Enable, Disable |
