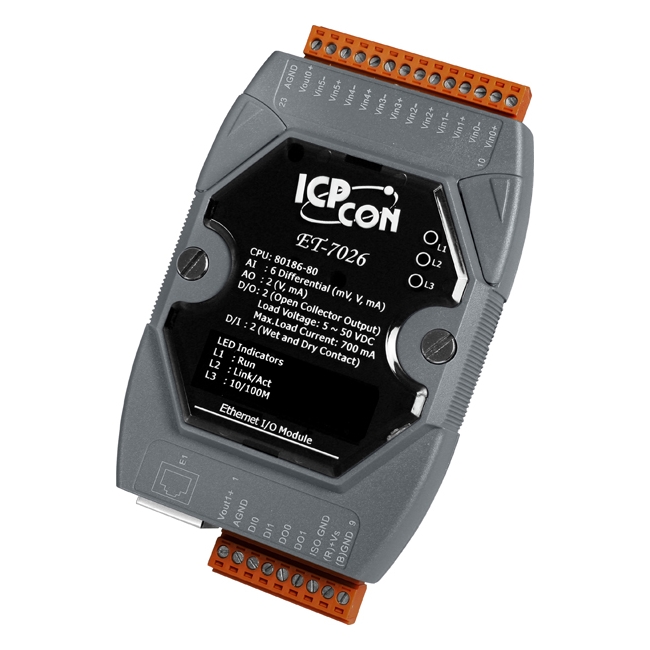

ET-7026多功能I/O輸入模組


產品型錄(PDF)

Models ET-7026 PET-7026 ET-7226 PET-7226
Software
Built-In Web Server Yes
Web HMI Yes
I/O Pair Connection Yes
Communication
Ethernet Port 1 x RJ-45, 10/100 Base-TX 2 x RJ-45, 10/100 Base-TX, Swtich Ports
PoE - Yes - Yes
Protocol Modbus/TCP, Modbus/UDP
Security ID, Password and IP Filter
Dual Watchdog Yes, Module (0.8 second), Communication (Programmable)
LED Indicators
for System Running Yes
for Ethernet Link/Act Yes
for DI/DO status - Yes
for PoE Power - Yes - Yes
2-Way Isolation
Ethernet 1500 VDC - 1500 VDC -
I/O 2500 VDC
EMS Protection
ESD (IEC 61000-4-2) ±4 kV Contact for Each Terminal and ±8 kV Air for Random Point
EFT (IEC 61000-4-4) ±4 kV for Power Line Line ±2 kV for Power Line
Surge (IEC 61000-4-5) ±0.5 kV for Power Line ±2 kV for Power Line
Power Requirements
Reverse Polarity Protection Yes
Powered from Terminal Block 10 ~ 30 VDC 12 ~ 48 VDC 12 ~ 48 VDC 12 ~ 48 VDC
Powered from PoE - Yes, IEEE 802.3af, Class1 - Yes, IEEE 802.3af, Class1
Consumption 3.6 W (Max.) 3.9 W (Max.) 5.0 W (Max.) 5.2 W (Max.)
Mechanical
Dimensions (W x L x H) 72 mm x 123 mm x 35 mm 76 mm x 120 mm x 38 mm
Installation DIN-Rail or Wall mounting
Environmental
Operating Temperature -25 ~ +75°C
Storage Temperature -30 ~ +80°C
Humidity 10 ~ 90% RH, Non-condensing

Analog Input
Channels 6 (Differential)
Type +/-500 mV, +/-1V, +/-5 V, +/-10 V
+0 mA ~ +20 mA, +/-20 mA, 4 ~ 20 mA
(Jumper Selectable)
Individual Channel Configuration Yes
Resolution 16-bit
Sampling Rate Normal Mode 10 Samples/Second (Total)
Fast Mode 50 Samples/Second (Total)
Accuracy Normal Mode +/-0.1%
Fast Mode +/-0.5% or better
Zero Drift +/-20 μV/°C
Span Drift +/-25 ppm/°C
Overvoltage Protection 240 Vrms
Overcurrent Protection 50 mA Max. at 110 VDC/VAC Max.
Common Voltage Protection ±200 VDC
Overcurrent Protection Yes, 50 mA at 110 VDC
Virtual Channel to Channel Isolation Yes, 400 VDC
Open Wire Detection for 4 ~ 20 mA Yes
Input Impedance Voltage 2 MΩ
Current 125 Ω
Common Mode Rejection 86 dB Min.
Normal Mode Rejection 100 dB
Open Wire Detection Yes, for 4 ~ 20 mA only
Virtual Channel to Channel Isolation +/-400 VDC
Analog Output
Channels 2
Type +0 VDC ~ +5 VDC, +/-5 VDC, +0 VDC ~ +10 VDC,
+/-10 VDC,+0 mA ~ +20 mA, +4 mA ~ +20 mA
(Jumper Selectable)
Individual Channel Configuration Yes
Resolution 12-bit
Accuracy +/-0.1% of FSR
Voltage Output Capabil 20 mA @ 10 V
Current Load Resistance 500 Ω
Open Wire Detect Yes, for 4 ~ 20 mA only
Power-on Value Yes, Programmable
Safe Value Yes, Programmable
Digital Input/Counter
Channels 2
Dry Contact
(Source)
On Voltage Level Close to GND
Off Voltage Level Open
Effective Distance
for Dry Contact
500 M Max.
Wet contact
(Sink Source)
On Voltage Level +1 VDC Max.
Off Voltage Level +3.5 VDC ~ +30 VDC
Input Impedance -
Counters Channels 2
Max. Count 4,294,967,285 (32-bit)
Max. Input Frequency 100 Hz
Min. Pulse Width 5 ms
Overvoltage Protection 30 VDC
Digital Output
Channels 2
Type Isolated Open Collector
Sink/Source (NPN/PNP) Sink
Max. Load Current 700 mA/Channel
Load Voltage +5 VDC ~ +50 VDC
Overvoltage Protection 60 VDC
Overload Protection 1.4 A
Short-circuit Protection Yes
Power-on Value Yes, Programmable
Safe Value Yes, Programmable
