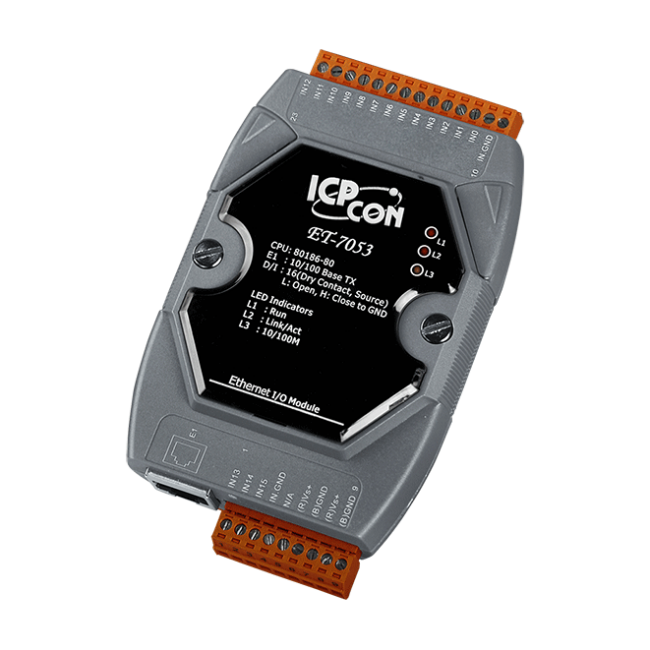

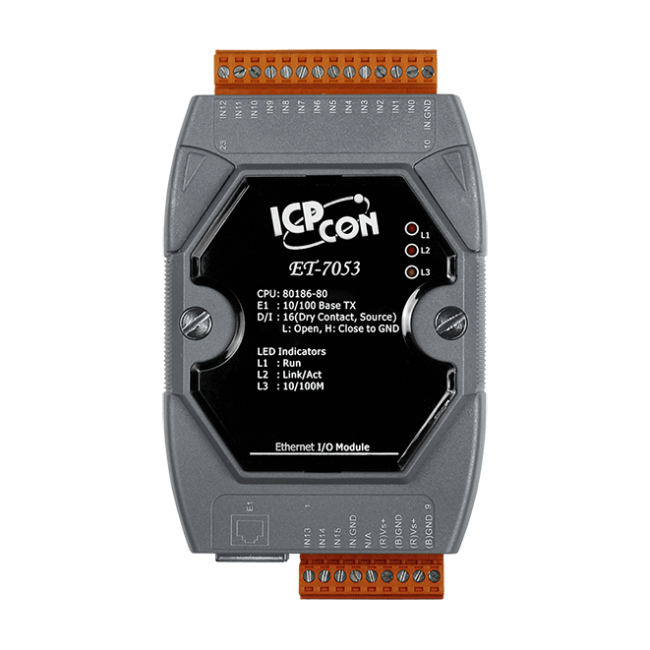

16點數位輸入ET-7053


產品型錄(PDF)

Models ET-7053 PET-7053 ET-7253 PET-7253
Software
Built-In Web Server Yes
Web HMI Yes
I/O Pair Connection Yes
Communication
Ethernet Port 1 x RJ-45, 10/100 Base-TX 2 x RJ-45, 10/100 Base-TX, Swtich Ports
PoE - Yes - Yes
Protocol Modbus/TCP, Modbus/UDP
Security ID, Password and IP Filter
Dual Watchdog Yes, Module (0.8 second), Communication (Programmable)
LED Indicators
for System Running Yes
for Ethernet Link/Act Yes
for DI/DO status - Yes
for PoE Power - Yes - Yes
2-Way Isolation
Ethernet 1500 VDC - 1500 VDC -
I/O 2500 VDC
EMS Protection
ESD (IEC 61000-4-2) 4 kV Contact for Each Terminal and 8 kV Air for Random Point
EFT (IEC 61000-4-4) +/-4 kV for Power
Power Requirements
Reverse Polarity Protection Yes
Powered from Terminal Block 10 ~ 30 VDC 12 ~ 48 VDC 12 ~ 48 VDC 12 ~ 48 VDC
Powered from PoE - Yes, IEEE 802.3af, Class1 - Yes, IEEE 802.3af, Class1
Consumption 2.7 W (Max.) 2.8 W (Max.) 3.7 W (Max.) 4.1 W (Max.)
Mechanical
Dimensions (W x L x H) 72 mm x 123 mm x 35 mm 76 mm x 120 mm x 38 mm
Installation DIN-Rail or Wall mounting
Environmental
Operating Temperature -25 ~ +75°C
Storage Temperature -30 ~ +80°C
Humidity 10 ~ 90% RH, Non-condensing

Models ET-7053 PET-7053 ET-7253 PET-7253
Digital Input/Counter
Channels 16
Contact Dry Contact
Sink/Source (NPN/PNP) Source
On Voltage Level Close to GND
Off Voltage Level Open
Counters Max. Count 4,294,967,285 (32 bits)
Max. Input Frequency 500 Hz 100 Hz
Min. Pulse Width 1 ms 5 ms
Overvoltage Protection -
Effective Distance 500 M Max.
