CAT-2000系列支援EtherCAT標準協定及多種拓撲連接，如: 線形、環形、星形及菊花鏈形 (daisy chain) 等，能夠使設備靈活的安裝及佈線，且提供您簡易配置、維護成本低廉且有效的解決方案。

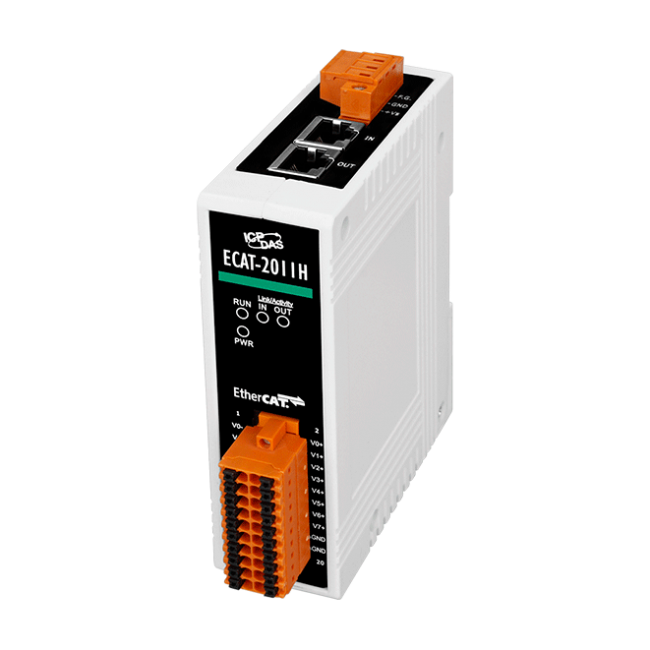

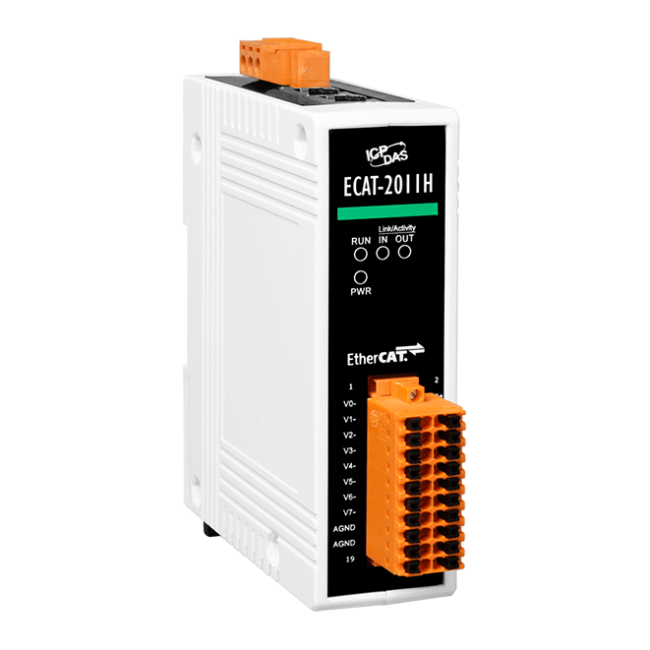

ECAT-2011H內建了16個單端/8個差動輸入通道可經由軟體設定來選擇，另外還可以透過進程數據 (Process Data) 來確認目前輸入狀態。 ECAT-2011H通過Conformance Test Tool軟體的測試與驗證，依據您的需求快速建立一個EtherCAT網路，並配合各家標準EtherCAT主站實現多元化的應用。
產品應用
|
 |
特 色
- 高速網路通訊：EtherCAT
- 高性能MCU有效處理資料

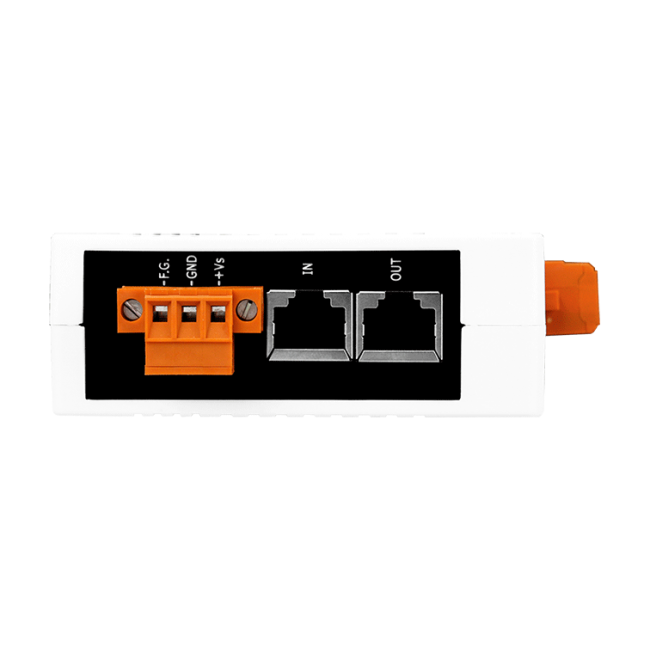

- 2埠RJ-45
- 2站有效通訊距離可達100公尺(100BASE-TX)
- 支援菊花鏈 (Daisy Chain)
- EtherCAT Conformance Test Tool 驗證
- 可拔插端子/接頭

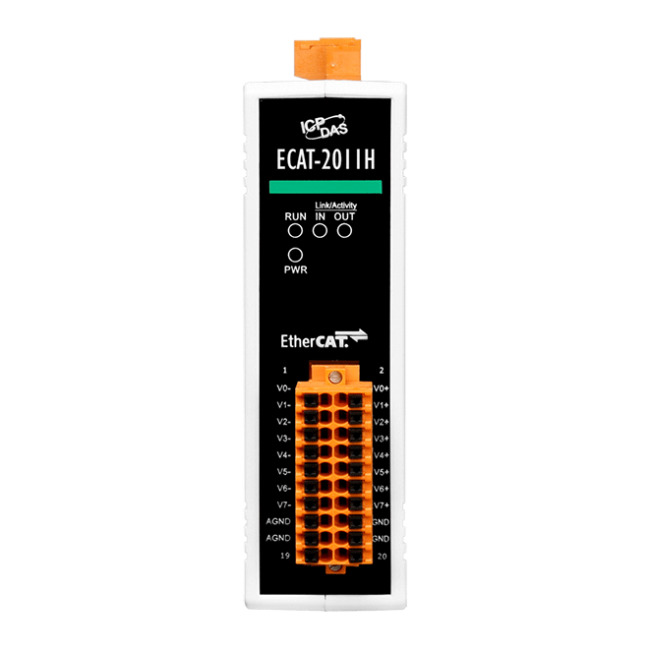

- LED指示燈
- 內建16個單端/8個差動輸入通道
- 符合 RoHS環保規範
硬體規格
| Analog Input | |
| Channels | 8/16 |
| Wire Connection | 8 Differential or 16 Single-ended (Software Selectable - see Note 1) |
| Type | Voltage, Current |
| Range | 0~10V, ±10 V, ±5 V, ±2.5 V, 0~ 20 mA, ±20 mA, 4~20 mA or ±4 ~20 mA (Software selectable) |
| Resolution | 12-bit |
| Sampling Rate | 1k Hz per channel |
| Accuracy | 0.2% of FSR |
| Individual Channel Configuration | Yes |
| Over Voltage Protection | ±35 VDC |
| Open Wire Detection for +4 ~ 20mA | Yes |
| Communication Interface | |
| Connector | 2 x RJ-45 |
| Protocol | EtherCAT |
| Distance between Stations | Max. 100 m (100BASE-TX) |
| Data Transfer Medium | Ethernet/EtherCAT Cable (Min. CAT 5), Shielded |
| Power | |
| Input Voltage Range | 10V ~ 30VDC |
| Power Consumption | Max. 4W |
| Mechanism | |
| Installation | DIN-Rail |
| Dimensions | 110mm x 90mm x 33mm (H x W x D, without connectors) |
| Case Material | UL 94V-0 housing |
| Environment | |
| Operating Temperature | -25℃ ~ 75℃ |
| Storage Temperature | -30℃ ~ 80℃ |
| Relative Humidity | 10 ~ 90%, No Condensation |
| ESD (IEC 61000-4-2) | 4 KV Contact for Each Channel |
| EFT (IEC 61000-4-4) | Signal: 1 KV Class A; Power: 1 KV Class A |
| Surge (IEC 61000-4-5) | 1 KV Class A |
訂購訊息
|
ECAT-2011H CR
|
EtherCAT Slave I/O Module with 16-ch/8-ch AI (RoHS) |
