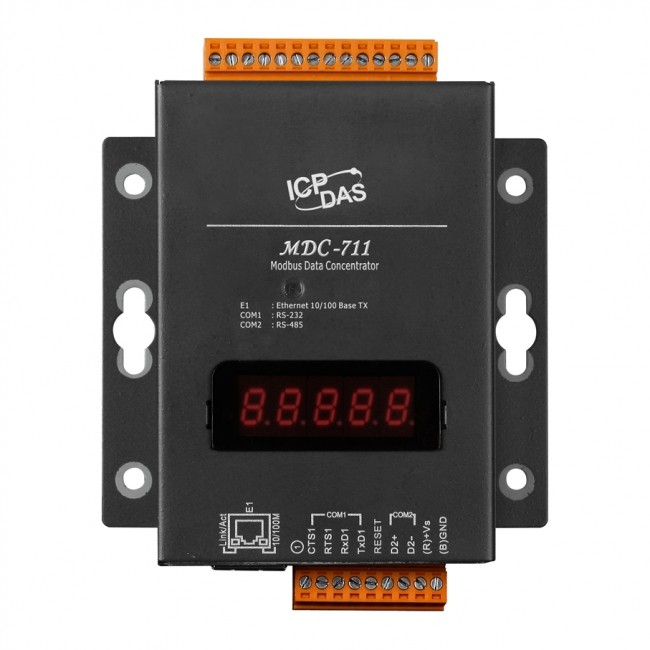

Modbus 數據集中器 :MDC-711 / MDC-714 / MDC-741


 產品型錄(PDF)


        Features
  • Web-based user interface
  • Easy configuration with .CSV file
  • Supports the Modbus RTU master and slave
  • Support for up to 8 Modbus TCP masters
  • Data pool for up to 9600 registers
  • Modbus polling commands for up to 240 definitions
  • Upgrade Modbus/RTU devices with Ethernet communication ability
  • Speed up the time for reading from multiple Modbus/RTU devices

        Introduction
 MDC-700 series is a Modbus Data Concentrator used to access data from disparate Modbus slave devices with a contiguous Modbus address table ranged by the concentrator. Up to 240 Modbus/RTU commands can be performed to read data from Modbus slave devices via RS-232/485, and up to 8 Modbus/TCP masters are allowed to get the polled data via the Ethernet. The Modbus/TCP masters directly read/write the data in the MDC-700 instead of polling each Modbus/RTU slave device one by one. This way not only makes the data on the RS-232/485 sharable to multiple Modbus/TCP master but also shorten the time to read/write data from/to multiple Modbus/RTU slave devices.

Editing the Modbus/RTU commands for accessing the Modbus RTU slaves is simple and convenient with Comma Separated Values (CSV) format. In addition, a web-based user interface is provided to configure the concentrator and remotely monitor the state of the connection of Modbus RTU slaves.




Models MDC-711 MDC-714 MDC-741
Ethernet
Port x1, 10/100 Base-TX
Protocol Modbus/TCP Slave
Max. Connection 8
COM Port
RS-232 x1, (TXD, RXD, RTS, CTS, GND) x4, (TXD, RXD, RTS, CTS, GND)
RS-485 x1, (Data+, Data-) x4, (Data+, Data-) x1, (Data+, Data-)
Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 (bps)
Data Format N81, E81, O81
Protocol Modbus RTU Master/Modbus RTU Slave
Max. Node 32 slaves for each RS-485 port
Polling Definition 240 definitions for all RS-232/485 ports
Shared Memory 9600 registers for each of AI, AO, DI and DO data
System
5-Digit 7 Segment LED Display Yes, to display IP address
System LED Indicator Yes, to display heartbeat
Mechanical
Dimension (W x H x D) 102 mm x 125 mm x 28 mm
Installation Wall Mount
Power
Required Supply Voltage +10 VDC ~ +30 VDC (non-regulated)
Power Consumption 2.5 W
Environment
Operating Temperature -25°C ~ +75°C
Storage Temperature -30°C ~ +80°C
Humidity 10 ~ 90% RH, non-condensing



MDC-711 CR Modbus Data Concentrator with 1x Ethernet and 1 x RS-232, 1 x RS-485 (RoHS)
MDC-714 CR Modbus Data Concentrator with 1x Ethernet and 1 x RS-232, 4 x RS-485 (RoHS)
MDC-741 CR Modbus Data Concentrator with 1x Ethernet and 4 x RS-232, 1 x RS-485 (RoHS)
