| Models |
VXC-112AU |

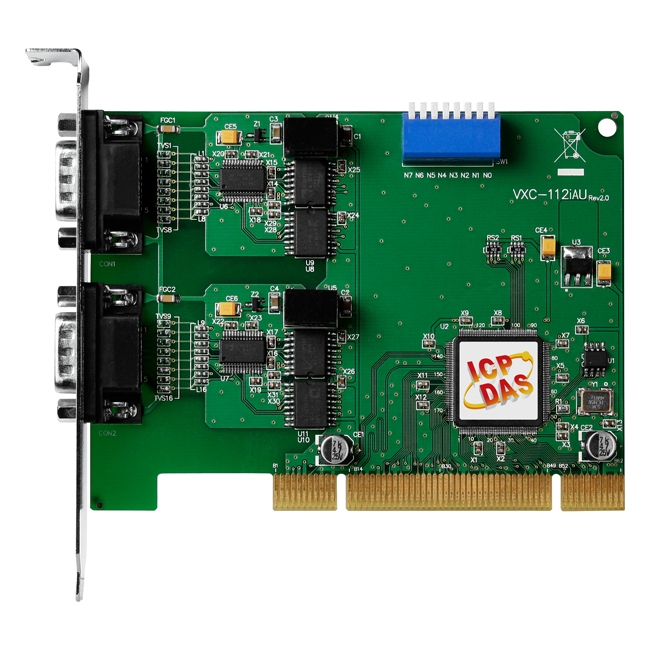

VXC-112iAU |
VEX-112 |
VEX-112i |
| Communication Port |
| COM1 ~ COM2 |
RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI, GND) |
| UART |
16C950 compatible |
| Baud Rate |
50 ~ 115200 bps |
| Data bit |
5, 6, 7, 8 |
| Stop bit |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Mark, Space |
| FIFO |
Internal 128 bytes |
| Isolated |
- |
2500 VDC |
- |
2500 VDC |
| General |
| Bus Type |
Universal PCI, 3.3 V and 5 V, 33 MHz, 32-bit, Plug and Play mechanism |
PCI Express x1, Plug and Play |
| COM-Selector |
Yes (8-bit DIP switch) |
| Connector |
2 x DB9 (Male) |
| Power Consumption |
100 mA @ 5 V |
480 mA @ 5 V |
120 mA @ 5 V |
440 mA @ 5 V |
| Operating Temperature |
0 °C ~ +60 °C |
| Storage Temperature |
-20 °C ~ +70 °C |
| Humidity |
0 ~ 90% RH, non-condensing |
| Dimensions (L x W x D) |
134 mm x 90 mm x 22 mm |
110 mm x 94 mm x 22 mm |
|
